28 October 2025
If you work with stainless steel welded wire mesh, stainless steel welded wire mesh rolls, stainless steel welded wire panels, you’ve probably noticed the market shifting. Demand is up in infrastructure and bio-secure farming, while architects keep asking for cleaner lines and tighter tolerances. To be honest, the surprises have been pleasant: better weld consistency, quicker lead times, and a renewed focus on traceable materials.
· 316-grade preference for coastal and food environments; 304 remains the value workhorse.
· Pre-flattened panels for tighter flatness tolerance in architectural screens.
· Documented salt-spray test data and mill certificates—buyers ask for proof, not promises.
Hebei Xiangguang Metal Net Co., Ltd.—one of the more reliable stainless steel welded wire mesh manufacturers I’ve visited—keeps steady stock in 304/316 and turns custom jobs quickly. Tensile strength for SS wire per ASTM A580 typically lands ≈ 600–800 MPa; welds are qualified to AWS D1.6. In field tests, 316 mesh often clears 500–1,000 h salt-spray with proper finishing; your mileage varies with installation and maintenance.
Type | Grade | Wire Ø | Opening | Size | Finish/Tests |

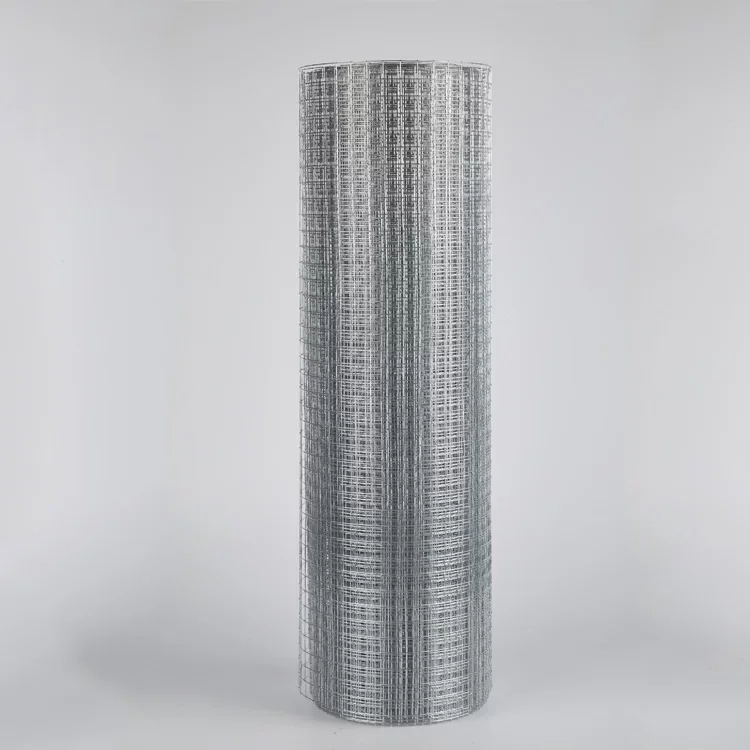

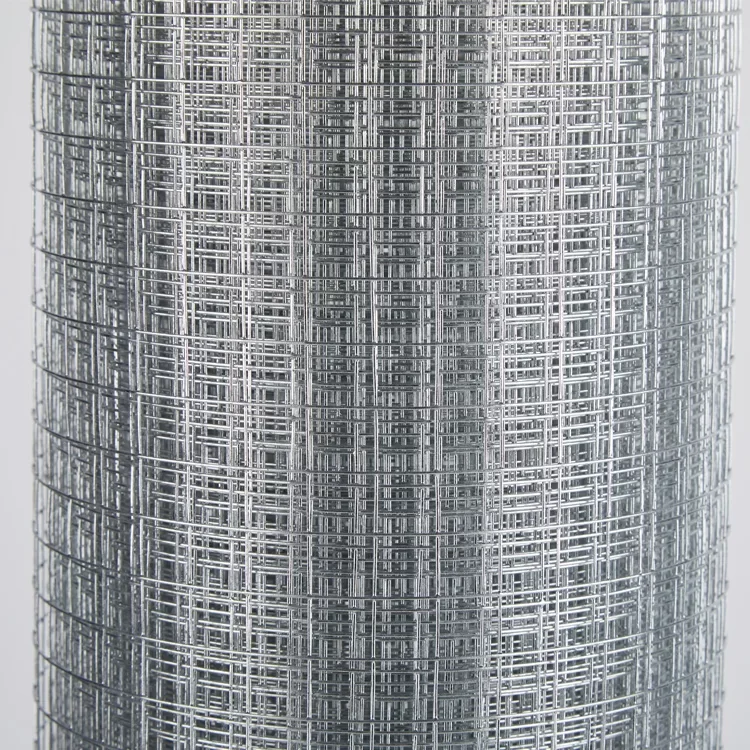

Roll | 304 / 316 | 0.5–5.0 mm | 6–100 mm (¼″–4″) | W: 0.5–2.5 m; L: 15/30/60 m | Pickled/polished; ISO 9227 salt-spray |
Panel | 304 / 316 | 1.0–8.0 mm | 25–100 mm | W: 0.5–2.5 m; L: 2–3 m+ | Deburred; AWS D1.6 weld QA |
Material selection (304/316) → precision drawing → straightening/cut-to-length → optional pre-crimp → automated spot or continuous welding → inspection (weld pull, dimensional checks to ASTM/EN norms) → finishing (pickling, passivation, polish) → cut to sheets, discs, rectangles → packaging. Service life? Inland installs often see 15–25 years; coastal 8–15 years if you choose 316 and wash down periodically.
· Construction: slab reinforcement, safety partitions, formwork facing.
· Food and pharma: cleanable guards and racks—316 wins here.
· Agriculture and animal enclosures: strong, no fray edges after cutting.
· Public facilities and transport: vandal-resistant barriers and screens.
Mini case: A marine contractor in Qingdao swapped galvanized panels for stainless steel welded wire mesh and reports zero coating peel and fewer replacements after two winters—ROI in 14 months, surprisingly quick.
Cut-to-shape discs and rectangles (no fray—welded intersections hold), edge deburring, panel flatness control (≈ ±2 mm typical on small panels), passivation for chloride-heavy sites, and tight opening tolerances for machine guarding. Need stainless steel welded wire mesh rolls that hug a curved wall? Go thinner wire and smaller openings; installers will thank you.
Vendor | Grades | Certs | Lead Time | Notes |
Hebei Xiangguang Metal Net | 304/316 | ISO 9001; AWS weld QA | Stock: fast; Custom: 7–15 days | Clean welds; strong QC; custom shapes |
Marketplace Vendor (typical) | 304 (limited 316) | Varies | 10–25 days | Good price; mixed traceability |
Regional Distributor | 304/316 | ISO 9001 | Immediate for standard sizes | Convenient; limited customization |
· Ask for mill certs (ASTM A580) and weld procedure/WPS per AWS D1.6.
· Request salt-spray or equivalent corrosion data for coastal jobs.
· Check edge quality and panel flatness if it’s visible work.
If you’re scouting stainless steel welded wire mesh for sale, verify grade, opening, and finish first—price differences usually trace back to one of these.
Finally, for high-visibility facades, I guess you’ll lean on stainless steel welded wire panels with polished finish; for retrofits and curved guards, stainless steel welded wire mesh rolls save time on site.
1. ASTM A580/A580M – Standard Specification for Stainless Steel Wire.
2. AWS D1.6/D1.6M – Structural Welding Code: Stainless Steel.
3. ISO 9227 – Corrosion tests in artificial atmospheres (salt spray).
4. EN 10223 – Steel wire and wire products for fences (welded mesh related).
5. ISO 9001 – Quality management systems (vendor certification).
